Belgravia

Belgravia (E)

Easy service maintenance because of demountable acoustical lay-in tile in recessed T-grid

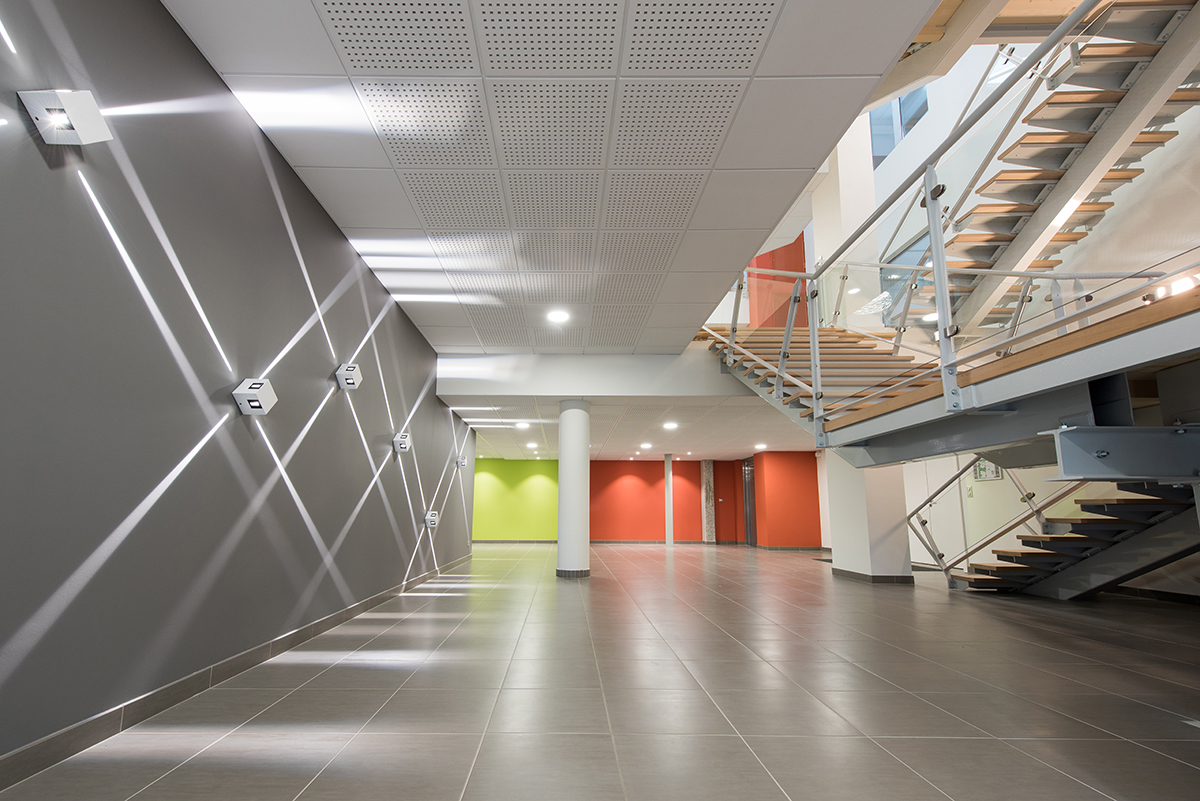

  • Belgravia with Quadril perforation at Shlumberger head office in France.
  • Belgravia is a lay-in ceiling tile with a 8mm recess.

Product details

Belgravia is a demountable acoustic ceiling tile. It is installed as a lay-in tile in a recessed T-grid. The acoustic ceiling is exceptionally easy to install and demount for servicing of installation. Belgravia ceiling tiles come with a variety of perforation designs and offer top acoustic performance.

  • Verified Environmental Product Declaration (EPD)
  • Danish Indoor Climate Labelling
  • Made from gypsum, a recyclable material
  • Fireresistant
  • Repaintable without loss of acoustics
  • High acoustical performance
  • Rich design possibilities with different perforation designs
  • Easy access to installations
  • Listed to be used in Nordic Swan Ecolabelled buildings
  • Product is recyclable and can be reused in the production of new gypsum boards and gypsum tiles

Top downloads

See all downloads

Edge Designs

Belgravia (E) Belgravia (E) Recessed S15 suspension grid
Belgravia (E) Belgravia (E) Recessed S24 suspension grid
Belgravia (E) Belgravia (E) Fineline suspension grid

Perforation Designs

Micro Micro Square 3x3mm, c/c 8.3mm
Globe Globe Circles Ø6mm, c/c 15mm

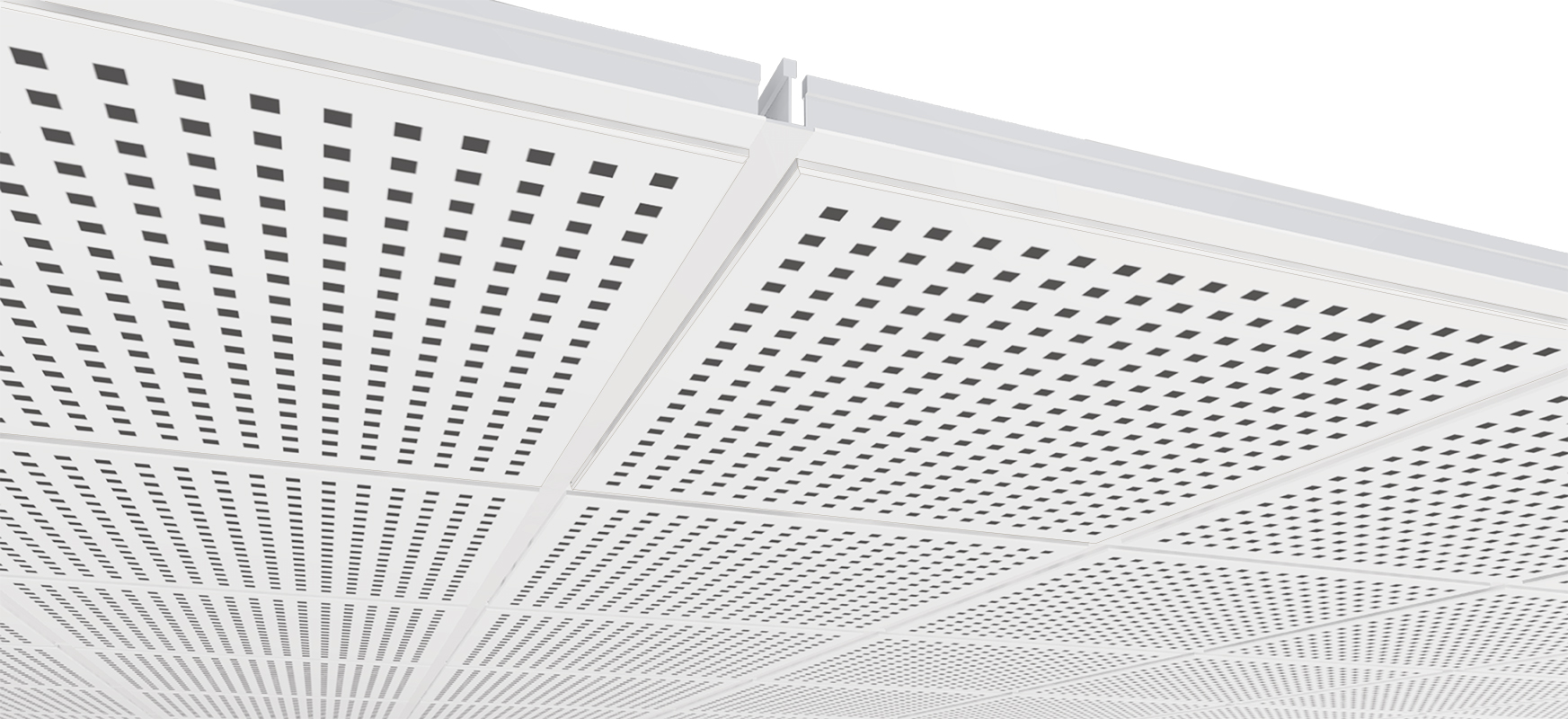

Quadril Quadril Square 12x12mm, c/c 30mm
Tangent Tangent Obround 4x14 mm, c/c 10/20mm

Reference project with Belgravia

With Belgravia acoustical ceiling, you can count on high quality and excellent acoustic comfort. It is therefore often used as acoustical ceiling in healthcare facilities and in schools.

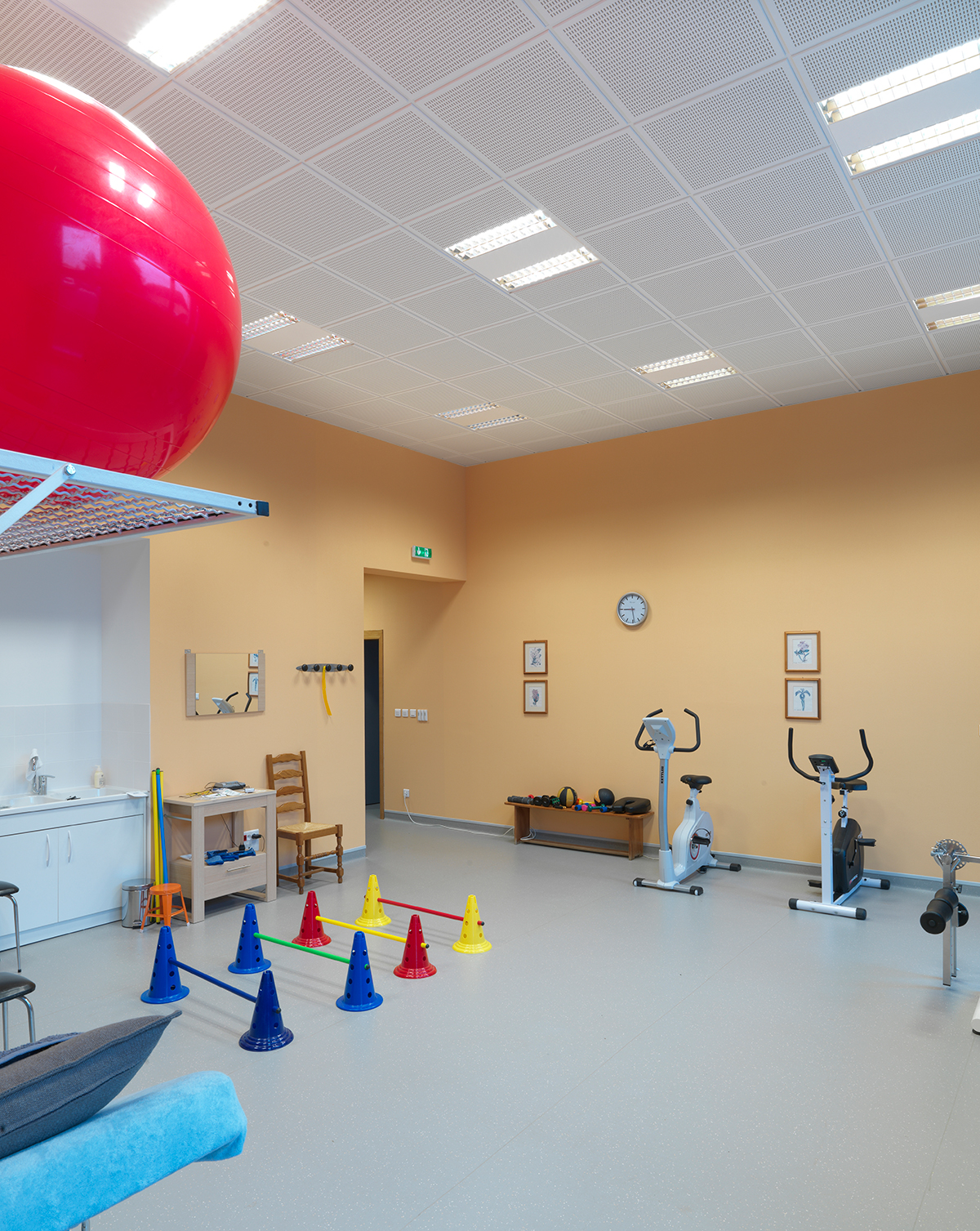

  • Belgravia Tangent at a medical centre in France.

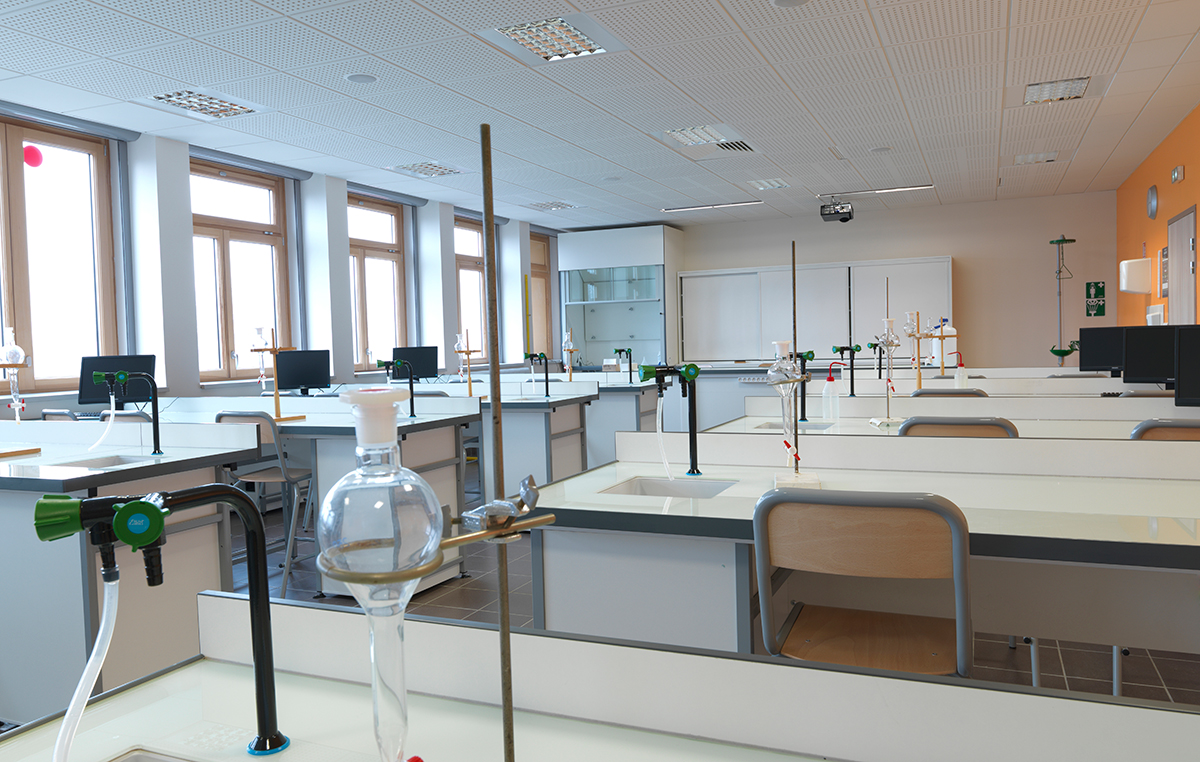

  • Belgravia Quadril at a secondary school.

Time-saving solution

Belgravia acoustic tiles are installed as lay-in tiles with tegular edge. This means that the tiles lay firmly in the grid and make it easy to straighten the suspension grid.

Recyclable choice

Belgravia acoustical ceiling is made of perforated gypsum - a robust, form stable, clean, safe, and highly recyclable material which can be recycled again and again (high fire class and certified with Danish Indoor Climate Labelling highlights the properties of gypsum). In fact, a Belgravia ceiling tile consists of up to 30%  recycled gypsum.

Long service life

The ceiling tiles can be repainted as often as required, with no impact on acoustic performance. Belgravia tiles are easy to demount and give effortless access to installations, minimising the risk of damage. Therefore, with Belgravia acoustic ceiling, you achieve a reliable and sustainable quality of the ceiling over time.

Product performance

  • Recyclability Recyclability

    Made of gypsum, a recycleable material

    Safe and clean material (Certified with Danish Indoor Climate Labelling and a high fire classification)

    Excellent light reflectance

    Long service life on material

  • Acoustics Acoustics

    Up to 0.90 NRC

    Up to 0.95 alpha value

    Value depending on design and construction

    Repaintable without loss of acoustics

  • Air quality Air quality

    Certified according to
    Danish Indoor Climate labelling

    Air purification with
    Cleaneo Technology

    Listed to be used in
    Nordic Swan Ecolabelled buildings

    Verified Environmental
    Product Declaration (EPD)

Plaza and Belgravia - Cutting and handling

Watch our guide and video so you will know how to cut and handle our demountable acoustic ceilings: Plaza, Plaza Unity, Belgravia and Belgravia Unity
