Designpanel

Designpanel

Large acoustic panel with framed perforation for ceiling and walls. Jointing and filling required. Seamless surface.

  • Designpanel as ceiling and wall lining in a military education building in Denmark.
  • Designpanel as ceiling lining on wood furring
  • Designpanel as wall lining on steel profiles.

Product specifics

Designpanel are unpainted acoustical gypsum panels for screw-fixing on ceilings and walls. The panels are installed on wood or steel furring. Designpanel comes with 4 tapered edges which makes the joint-filling easy. With Designpanel, you achieve a smooth, seamless surface with excellent acoustics.

  • Seamless, discreet look
  • Coherence between walls and ceilings
  • Possibility to make curved acoustic shapes
  • Repaintable without loss of acoustics
  • 100% recyclable material
Contact us

Top Downloads

See all downloads

Edge Designs

Designpanel as ceiling lining on wood Designpanel as ceiling lining on wood Edge B1 with 4 tapered edges, no visible joints
Designpanel as ceiling lining on steel Designpanel as ceiling lining on steel Edge B1 with 4 tapered edges, no visible joints
Designpanel as wall lining Designpanel as wall lining Edge B1 with 4 tapered edges, no visible joints

Perforation Designs

Globe Globe Circles Ø6mm, c/c 15mm
Micro Micro Square 3x3mm, c/c 8.3mm
Quadril Quadril Square 12x12mm, c/c 30mm
Tangent Tangent Obround 4x14 mm, c/c 10/20mm

Reference project with Designpanel

Designpanel offers a true application flexibility and a discreet design. It is therefore widely used as acoustic ceiling in homes, as acoustic vaults or in combinaton with standard dry-lining.

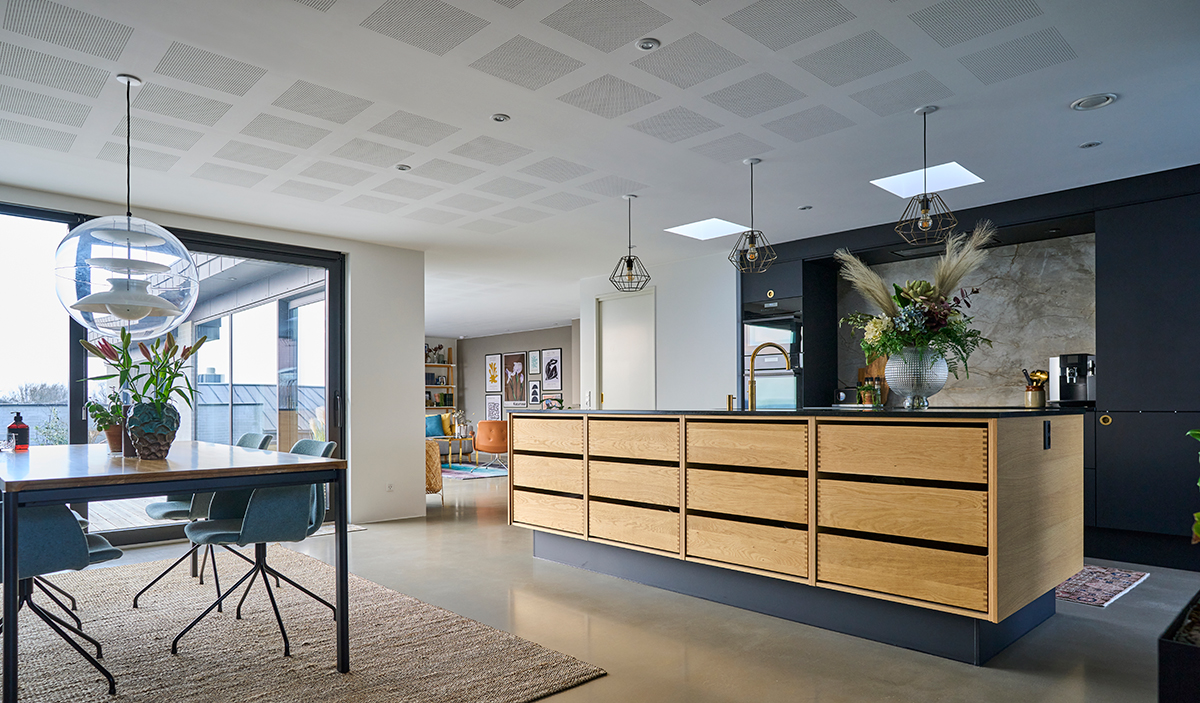

  • Thanks to its discreet, smooth surface, Designpanel is ideal for acoustic treatment in private homes.
  • Designpanel used for ceiling and wall lining at Victoria International School, UAE. More on this project.
  • Gypsum is a pliable material which makes curving on site easy.
  • Designpanel is easily integrated with regular gypsum boards.
Coherence between ceiling and walls

As a perforated gypsumboard, Designpanel can be fully integrated with regular gypsumboards. Thus, you can achieve a complete coherence between acoustical ceiling and other drywall surfaces in the room.

Sustainable comfort

Designpanel - like the rest of our products - are designed to last. The acoustical panels are made from gypsum - a robust, 100% recyclable material. The panels can be repainted again and again without any impact on the acoustical properties.

Design flexibility

With Designpanel you are free to shape your acoustic constructions as you like. The perforated gypsum panels can be used as ceiling or wall linings. They can be installed on wood or steel furring. Designpanel can also easily be curved, mitred and painted on site to suit your requirements.



Product performance

  • Sustainability Sustainability

    Made of gypsum

    100% recycleable

    Safe material

  • Acoustics Acoustics

    Up to 0.75 NRC

    Up to 0.70 alpha value

    Value depending on design and construction

  • Air quality Air quality

    Certified according to
    Danish Indoor Climate labelling

    Air purification with
    Cleaneo Technology
